3809MAC Dial Test Indicator

These dial test indicators are offered with choices of dial size, range and include accessories.

All 3808 and 3809 models have 1-1/4” (32mm) dial faces while 3908 and 3909 models offer a larger 1-9/16” (40mm) dial face.

Each inch reading and metric reading 3808 and 3809 is offered with a choice of two Graduation/Range/Reading configurations.

• Precision gear-driven design with smooth, jeweled movement
• Frictionally adjustable contact point reverses automatically, always maintaining clockwise hand rotation
• Meets or exceeds ANSI/ASME accuracy specifications
• High contrast, easy-to-read dials with yellow background for metric

• Item Number: DR90596
• Global Item Number: 3809MAC
• Grad: 0.01mm
• Range: 0.8mm
• Dial Reading: 0-40-0
• Dial Diameter: 32mm

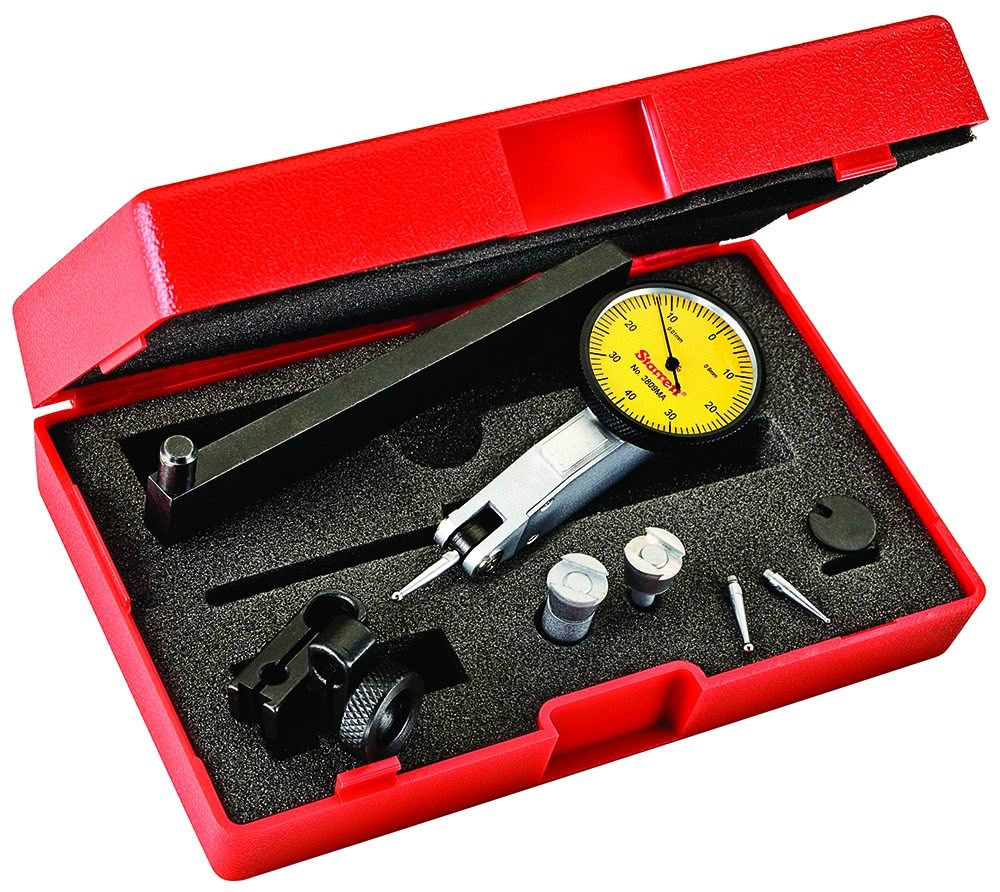

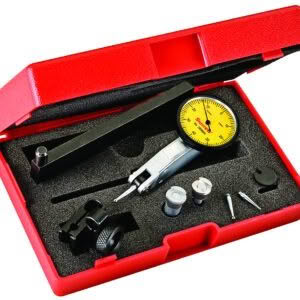

• ndicator, 2mm and 4mm contact points, 9.5mm and 4mm dovetail clamps, 4mm swivel post holder, tool post holder, contact wrench and case
• Status*: MTS
• Country of Origin: China

*MTO Made to order – Products subject to longer lead times when stock is not available.
MTO lead times: China: 90 days / USA: 120 days.
*MTS Made to stock (regular availability).
